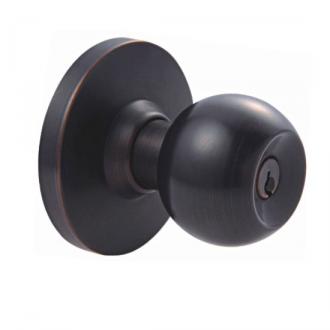

Series: HEAVYDUTY CYLINDRICAL KNOB

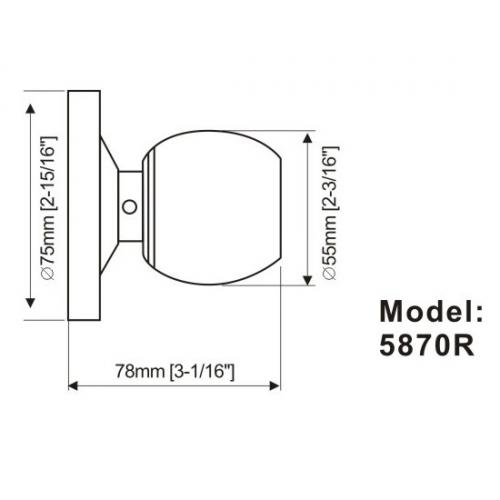

Model:5870R-TB-ET
Material: Steel
Finish: TB(US11P)
Other Finish:
Series Features
Cylinders:
- 5-pin cylinder with two nickel plated keys per lock.
- The locks are supplied with standard 5-pin keys.
- The cylinder are available for master key, grand master key and construction key.
DoorThickness:
- Standard 35 to 45 mm (1-3/8 to 1-3/4").
Backset:
- The standard backset is 60 mm (2-3/S").
- Also available for 70 mm (2-3/4") backset.
Standard Features:
- Wrought steel cylindrical lock housing with chromated finish for better corrosion resistance.
- Outside knob is removable for cylinder replacement.
- Concealed screw design.
- Meet the 200,000 cycles requirements ofthe ANSI Grade 3.
