Series Features
Cylinders:
- 5-pin cylinder with two nickel plated keys per lock.
- The locks are supplied with standard 5-pin keys.

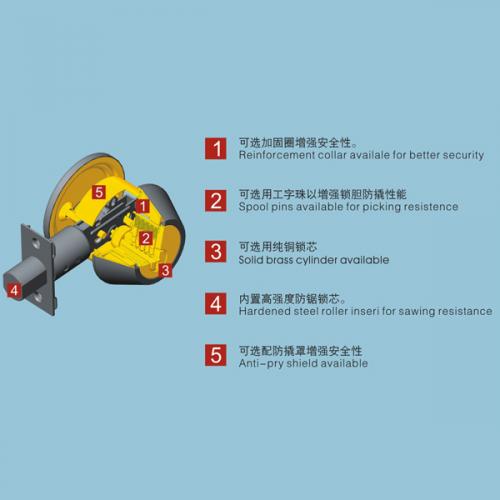

- For added protection, the 5 or 6 pins solid brass cylinder is avai|ab|e.The cylinder are available for master key, grand master key and construction key.

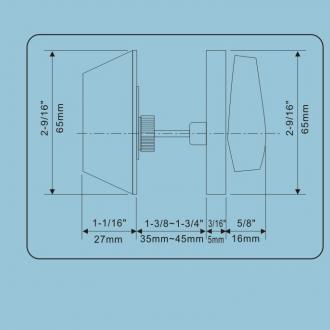

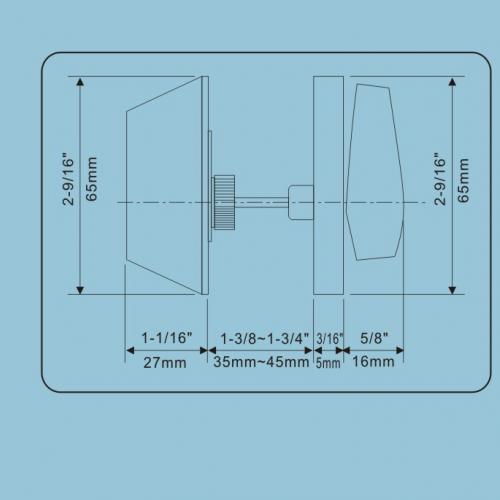

Door Thickness:
- Standard 35 to 45 mm (1-3/8 to 1-3/4").
Backset:
- The standard adjustable backset 60 mm or 70 mm (2-3/4").
Standard Features:
- Wrought steel cylindrical lock housing with chromated finish for better corrosion resistance.
- Meet the 200,000 cycles requirements ofthe ANSI Grade 3
