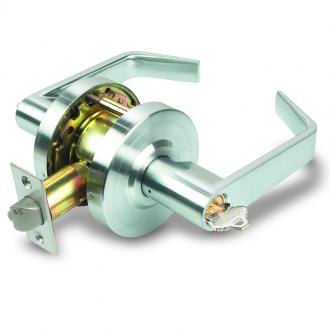

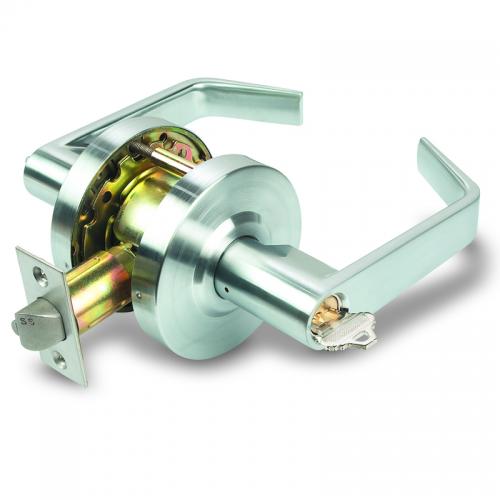

Series: 4500 Series-ANSI G2 Cylindrical Leverset
Model:4571
Material: Stainless Steel
Finish: SC(US26D)
Product Features
FEATURES:
* FW function available : Freewheeling clutch design Free turning handle in the locked position without opening door, to deter breaking of the handle.
* Push in and turn button function
* Concealed screw mounting
* Individual spring on each side to prevent lever sag, maintain reliability, reduce maintenance.
* Full length lever handle with 3/8" return
* High precision pick resistant 6-pin tumbler solid brass cylinder. Interchangeable with leading manufacturer cylinders. Must turn key one-quarter to remove and replace cylinder. Can be construction keyed and
masterkeyed as required.
* Optional removeable Thru Bolt
* Coil compression springs provide great strength and durability.
* Cylindrical body provides great strength and durability. Two sides spindle supporting mechanism eliminates lever wobble.
* UL 3 Hour Rated 1/2" Throw deadlatch completely reversible for flat and beveled doors. Stainless steel latch bolt and faceplate.
Backset: 2-3/4" standard. 2-3/8" optional.
Door Thickness: 1-1/2"--2" standard, 1-3/8"--1-3/4" options.
Cylinder: 5-Pin or 6-Pin removable core . Schlage "C " keyway or Kwikset and other options available.
Handing: Completely reversible.
Face plates: 1-1/8"x2-1/4"square corner standard. Round corner and other options available .
Strikes: 2-1/4" full lip square corner standard. Round corner and optional "T" available .
Bolt: 1/2" throw, stainless steel.
ANSI/BHMA: A156.2 Grade 2.
